Day 1 Overview

Introduction to Databricks

Why Databricks?

• Consistent, predictable environment for this Workshop

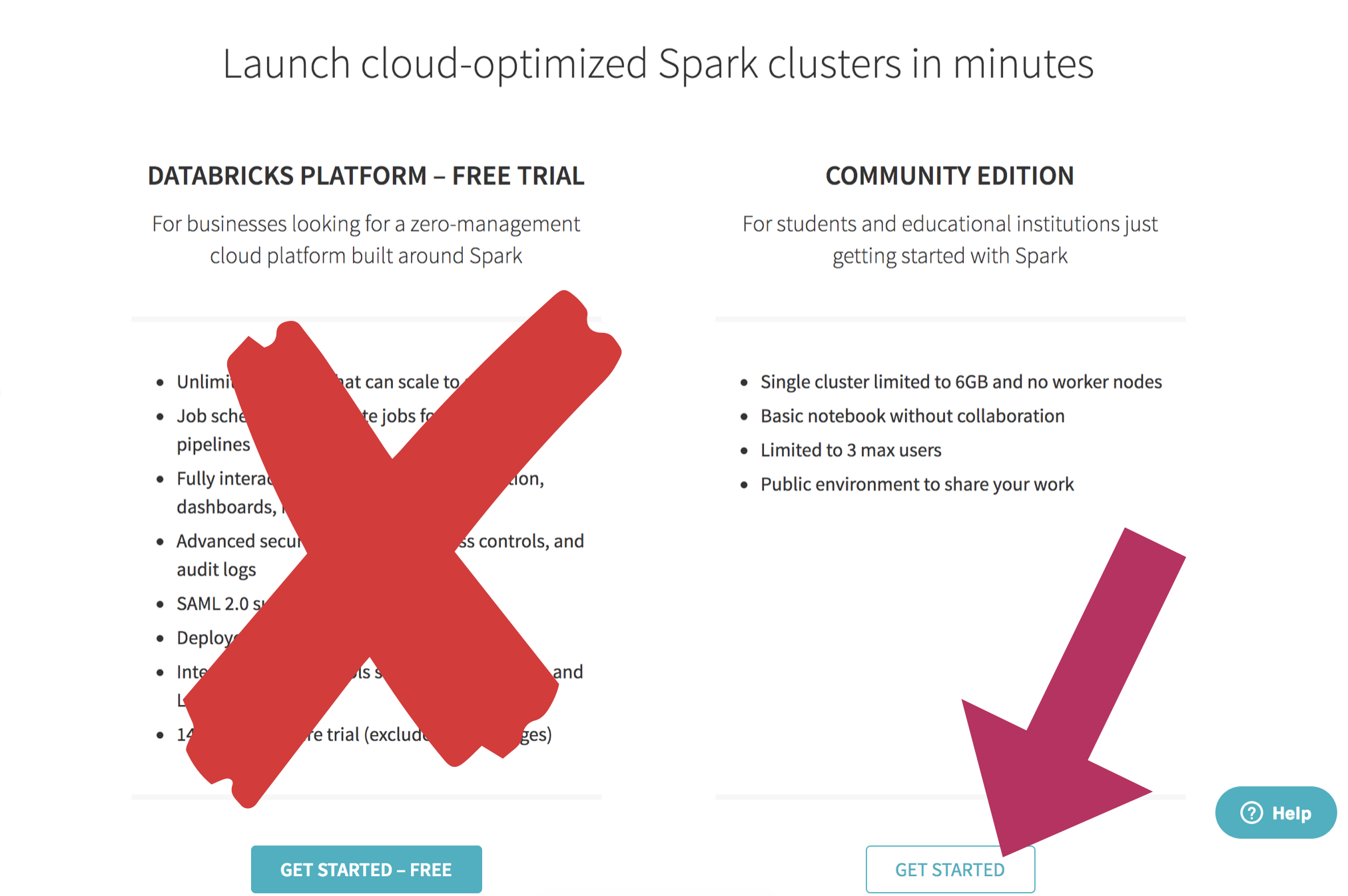

• free, 6GB AWS cluster (small but capable)
• plays well with S3 (and other AWS services)
• we'll be using S3 to access data

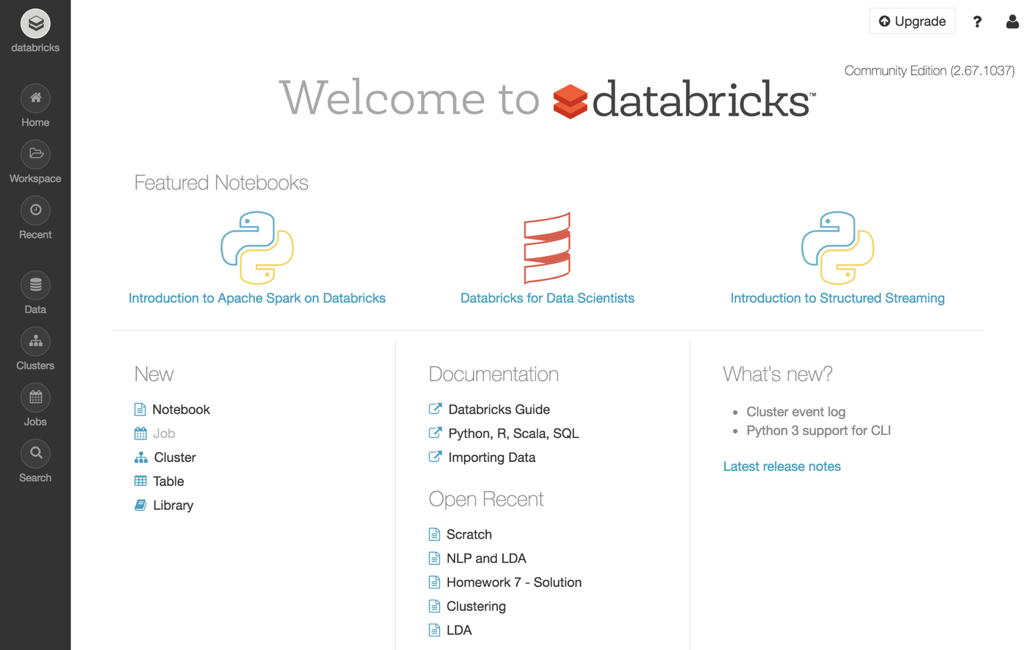

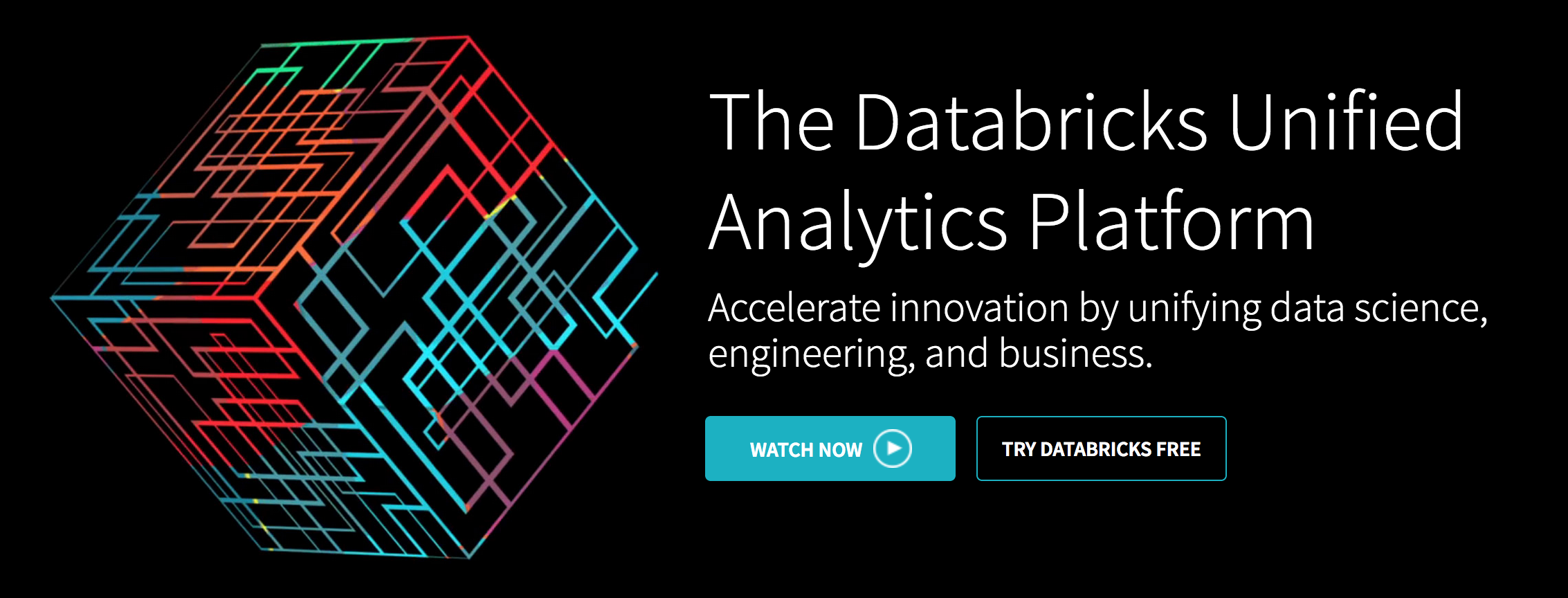

Databricks home page

Jupyter notebooks

• open-source project
• create and share code and documentation
• supports many languages: we will be using python
• we will also be using Markdown functionality
• part of the "Pydata" stack
• based around interactive, literate and reproducible computing

From Python to Databricks notebooks

1. Python
2. IPython
3. Jupyter
4. Databricks

Note: see also Zeppelin notebooks.

Scripts vs. Notebooks

• different mindset
• scripts: end-to-end program, often well-factored
• notebooks:
  • code fragments
  • good for data exploration
  • cells can be run out of sequence

Databricks notebooks

• Jupyter-like notebook that is tuned for Spark (more on that soon)
• Note "Run cell" functionality (Shift-Enter) as well as "Run all"
• Remember: the notebook instance is running on a (modest) AWS cluster

Distributed Computing

• vertical vs. horizontal scaling
• what's your limit?
• computing time (weeks? days? minutes?)

Key requirements of distributed systems

• Fault tolerance
• Recoverability
• Consistency
• Scalability

MapReduce

A different way of thinking about solving problems

• dividing a big problem into smaller steps
• those steps can proceed in parallel (i.e. independently)
• the results of those steps can be combined efficiently

An example: adding numbers

An example: adding numbers

32 + 12 + 23 + 4 + 7 + 21 + 19 + 32 + 3 + 11 + 88 + 23 + 1 + 93 + 5 + 28 = ?

An example: adding numbers

32 + 12 + 23 + 4 + 7 + 21  = ?
19 + 32 + 3 + 11 + 88      = ?
23 + 1 + 93 + 5 + 28       = ?
                          ------
                             ?

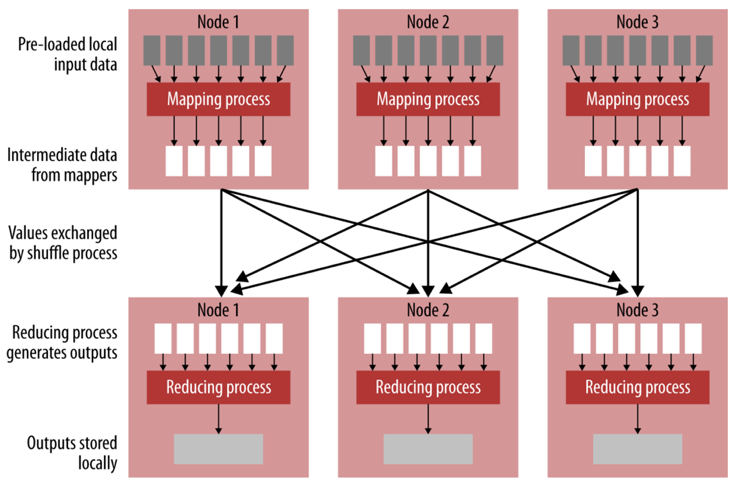

MapReduce

MapReduce

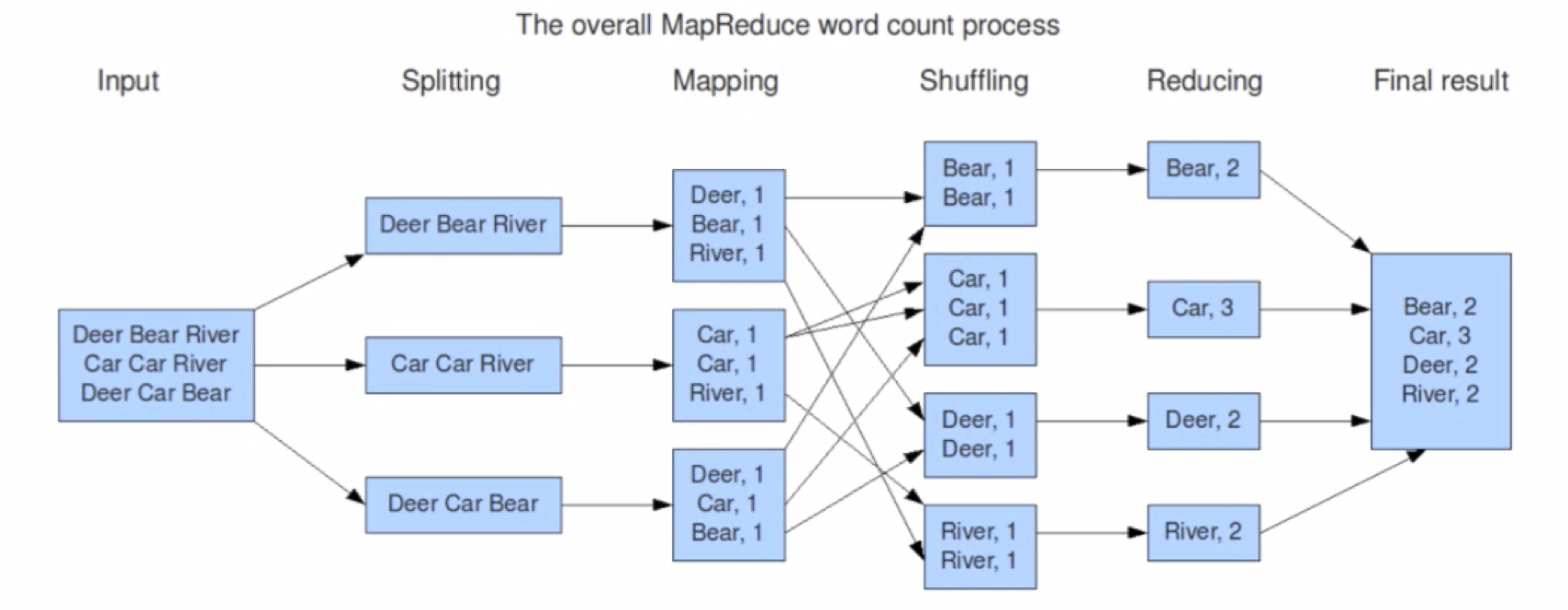

Another example: counting words

  Deer Bear Car
  Car Car River
  Deer Car Bear

MapReduce

MapReduce: conditions

• data are row-based
• manipulation of each row is independent of the manipulation of other rows
• manipulations can be easily combined

MapReduce Keys

• keys are not unique
• used to combine (reduce) elements with the same key
• contrast to python dictionaries, in which keys are unique

Typical MapReduce Workflow

• read (a lot of?) lines of data
• optionally split the lines into units of analysis (e.g. words)
• map each unit of analysis to a key-value pair (usually a tuple) (e.g. (word, 1))
• reduce the tuples by some operation like addition
• emit (e.g. print) the reduced values

Spark

• Spark is a "general-purpose distributed computing abstraction"
• focus on computation (rather than storage)
• provides an interactive shell (PySpark)
• good IPython and Jupyter integration
• all about parallelization
• very "lazy"

Spark

• up to 100x fast than Hadoop MapReduce
• written in Scala, providing Scala, Java and Python APIs
• support batch and real-time processing
• write once, run many places: Hadoop, Mesos, standalone, cloud, etc.
• one of the most active Apache Software Foundation projects
• not just for Big Data!

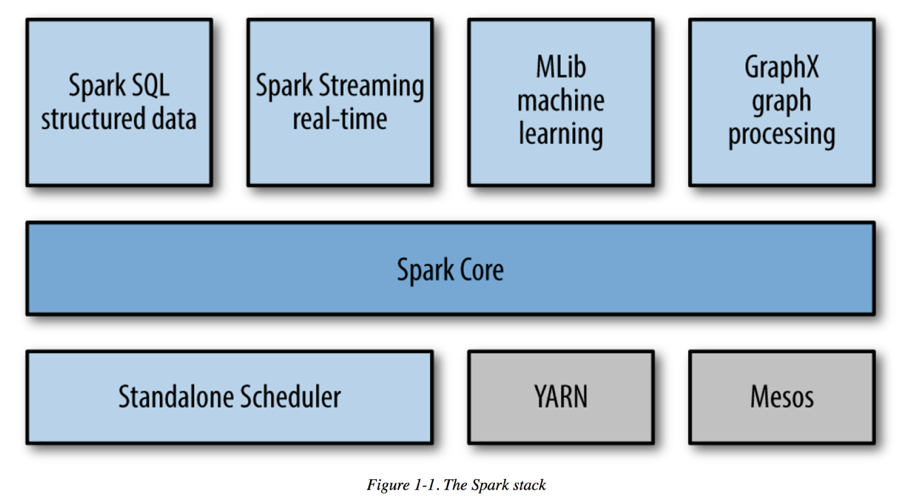

Spark

Spark APIs

• Resilient Distributed Datasets (RDDs)
• DataSets
• DataFrames

Resilient Distributed Datasets (RDDs)

• relatively low-level
• direct access to mapping, reducing, sorting, etc.
• commonly used by data professionals
• not our focus for this workshop

DataSets

• distributed collection of data
• only available via Scala or Java (i.e. no Python API)
• not our focus for this workshop

Spark DataFrames

• our main focus will be Spark DataFrames
• DataFrames are Spark DataSets organized into rows and columns
• on other words, they're tables
• conceptually very similar to pandas and R DataFrames

DataFrames: Getting Started

• all interaction os via a SparkSession object
• SparkSession == entry point to programming with Spark DataFrames
• represents an abstract connection to a computing back-end (and more!)
• Databricks provides a SparkSession in a variable called spark

Notebook #1

Creating Spark DataFrames

Once you have a SparkSession (reminder: variable spark in Databricks is a SparkSession), a DataFrame can be created from:

• a list
• an RDD
• a JSON file

Creating a DataFrame from a list

If using a list of tuples, include a list of column names; if using a list of values, specify value type:

df_from_other_list = spark.createDataFrame(
    [('Chris',67),('Frank',70)], ['name','score'])
df_from_other_list.show()

from pyspark.sql.types import FloatType
df_from_list = spark.createDataFrame(
    [1.0,2.0,3.0,4.0,5.0], FloatType())
df_from_list.show()

Create a DataFrame from a JSON file

# read a specially formatted JSON file (one JSON object per line)
df = spark.read.json("/mnt/umsi-data-science/data/yelp/business.json")
# Displays the content of the DataFrame to stdout
df.show()

Inferring Schema


df.printSchema()

root
 |-- address: string (nullable = true)
 |-- attributes: struct (nullable = true)
 |    |-- AcceptsInsurance: boolean (nullable = true)
 |    |-- AgesAllowed: string (nullable = true)
 |    |-- Alcohol: string (nullable = true)
 |    |-- Ambience: struct (nullable = true)
 |    |    |-- casual: boolean (nullable = true)
 |    |    |-- classy: boolean (nullable = true)
 |    |    |-- divey: boolean (nullable = true)
 |    |    |-- hipster: boolean (nullable = true)
 |    |    |-- intimate: boolean (nullable = true)
 |    |    |-- romantic: boolean (nullable = true)
 |    |    |-- touristy: boolean (nullable = true)
 |    |    |-- trendy: boolean (nullable = true)
 |    |    |-- upscale: boolean (nullable = true)
 |    |-- BYOB: boolean (nullable = true)

Creating a DataFrame from a file

Spark can load a number of different formats: json,  parquet, jdbc,  orc, libsvm, csv, text

df = spark.read.load("examples/src/main/resources/people.json",
  format=“json")

Column selection

df.select("name").show()

+--------------------+
|                name|
+--------------------+
|    Dental by Design|
| Stephen Szabo Salon|
|Western Motor Veh...|
|    Sports Authority|
|Brick House Taver...|
|             Messina|
...
only showing top 20 rows

Filtering

# Select businesses with 4 or more stars
df.filter(df['stars'] >= 4).show()

Grouping and sorting

# Count businesses by stars
df.groupBy("stars").count().show()

# Count businesses by stars and sort the output
df.groupBy("stars").count().sort("stars",ascending=False).show()

Explode

df = spark.createDataFrame([('Chris',[67,42]),('Frank',[70,72])],['name','scores'])
  df.show()

  +-----+--------+
  | name| scores|
  +-----+--------+
  |Chris|[67, 42]|
  |Frank|[70, 72]|
  +-----+--------+

Explode

df = df.withColumn('score',explode('scores')).show()

+-----+--------+-----+
| name| scores |score|
+-----+--------+-----+
|Chris|[67, 42]| 67  |
|Chris|[67, 42]| 42  |
|Frank|[70, 72]| 70  |
|Frank|[70, 72]| 72  |
+-----+--------+-----+

when... otherwise

import pyspark.sql.functions as F
df.withColumn('good', F.when(df['score'] > 50,1) \
  .otherwise(0)) \
  .show()

DataFrames can be joined

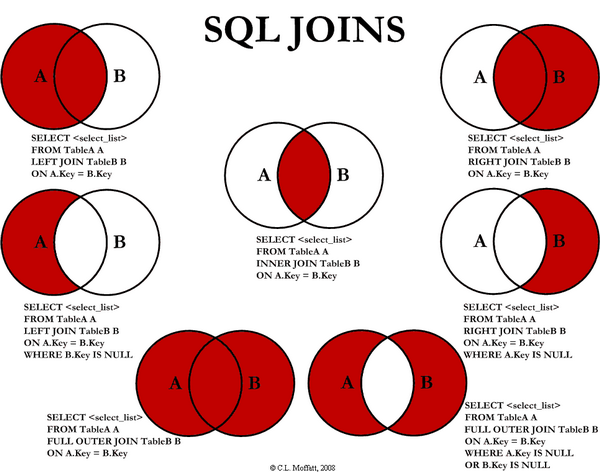

SQL Joins

SQL without a "real" database

• How about a SQL interface to your data (without actually loading the data into a database)?

df.createOrReplaceTempView("businesses")
sqlDF = spark.sql("SELECT * FROM businesses")
sqlDF.show()

SQL Review

SELECT [Columns] FROM [Tables]
    WHERE [Filter Condition]
    ORDER BY [Sort Columns]

Exploring data

The Three Vs:

• Volume: not just sampling
• Velocity: real-time
• Variety: text, audio, images, video, etc.

Data Sets for the Workshop

The Yelp Dataset

1. First things first: agree to usage terms and conditions (but don't download it).
2. Import the Yelp exploration notebook.

The Yelp Dataset

Work in your teams to

1. get a sense of which cities/regions/etc. are available
2. select one (e.g. Las Vegas)
3. use Spark SQL to get some descriptive facts about your selection.
4. turn real-world questions into Spark SQL queries
